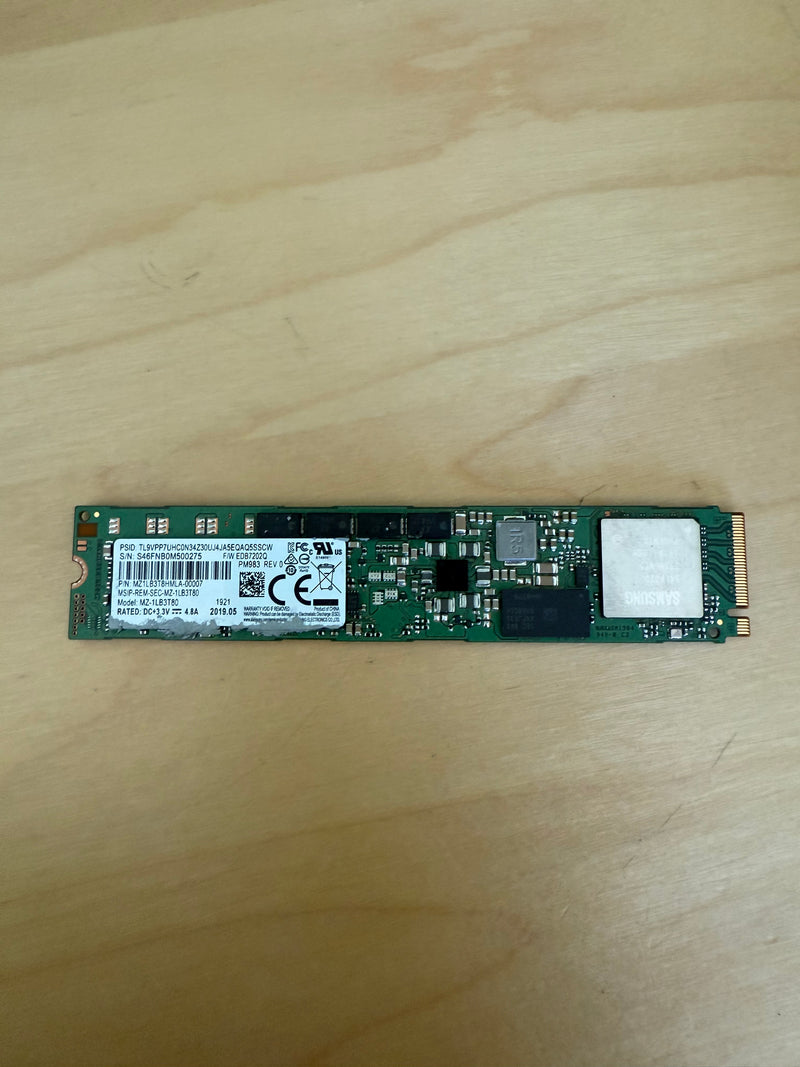

Samsung PM983 3.84TB M.2 22110 NVMe Enterprise SSD (MZ-1LB3T80) - Bench Tested, 100% Life, SMART Verified

Individually Tested, Bench-Verified Enterprise SSD

Every drive is fully tested and bench-verified. Each drive ships with a serial number and QR code linking to its individual bench report. 100% life remaining with very low lifetime writes (~6 TB per drive against a 5.47 PBW rated endurance — 99.9% of write endurance intact).

What We Test on Every Drive

• Life Remaining: 100% verified (Media Wearout Indicator)
• SMART Status: PASS — units flagged on intake are removed before listing, so every drive shipped is verified PASS
• Power-On Hours: ~38,200 hours typical
• Lifetime Writes: ~6 TB typical (rated endurance ~5.47 PBW — drives have 99.9% endurance left)
• Health Snapshot: April 2026

Specifications

• Brand: Samsung
• Series: PM983
• Capacity: 3.84 TB (3840 GB)
• Part Number (MPN): MZ-1LB3T80
• Model: MZ1LB3T8HMLA-00007
• Form Factor: M.2 22110 (110mm × 22mm × 3.8mm)
• Interface: PCIe Gen 3.0 x4 (NVMe 1.3)
• NAND: Samsung V-NAND TLC
• Life remaining: 100% verified
• Sequential Read: Up to 3,000 MB/s
• Sequential Write: Up to 1,400 MB/s
• Random Read: Up to 400,000 IOPS
• Random Write: Up to 80,000 IOPS
• Endurance: 5,470 TBW (1.3 DWPD)
• MTBF: 1.5M hours
• Firmware: EDB7602Q, EDB7502Q
• Power (Avg): 9 mW (active read), 7 mW (active write)
• Power (Idle): 2 mW

Enterprise Features

• Power Loss Data Protection (PLDP) — protects data in flight if power fails
• End-to-End Data Path Protection — detects and corrects transmission errors
• AES 256-bit Hardware Encryption (optional, TCG Trusted Computing Group support)
• Thermal Throttling — adaptive performance under thermal stress
• Workload Optimization for read-intensive and mixed-use enterprise environments

Why Nuvoxel

• 100% Life Remaining, Verified: Each drive's life % comes from actual SMART wear-leveling data, recorded on its individual bench page.
• Tested & Traceable: Each drive ships with a QR code linking to its individual bench report and SMART snapshots.
• Consistent Sourcing: Drives originate from the same enterprise environment, share firmware versions, and have nearly identical workload history.
• Same-Business-Day Shipping: In stock and ready to ship from the US.

Compatibility & Form Factor

Important: This drive uses the M.2 22110 form factor (110mm long, 22mm wide). Most consumer and server motherboards support the smaller M.2 2280 form factor (80mm long). The 22110 is larger and requires explicit motherboard support. Check your system documentation to confirm 22110 slot availability before ordering. Enterprise servers from Dell PowerEdge, HPE ProLiant, and Lenovo ThinkSystem families with high-capacity SSD slots may support 22110, but this is not universal.

Condition

Used — Server Pull. Each drive is fully tested and functional. 100% life remaining. Average power-on time: ~38,200 hours. Normal enterprise handling marks may be present. No retail packaging or accessories included. Each drive carries a refurbishment sticker with brand, MPN, GTIN, serial number, and a QR code linking to its bench report and SMART data.
